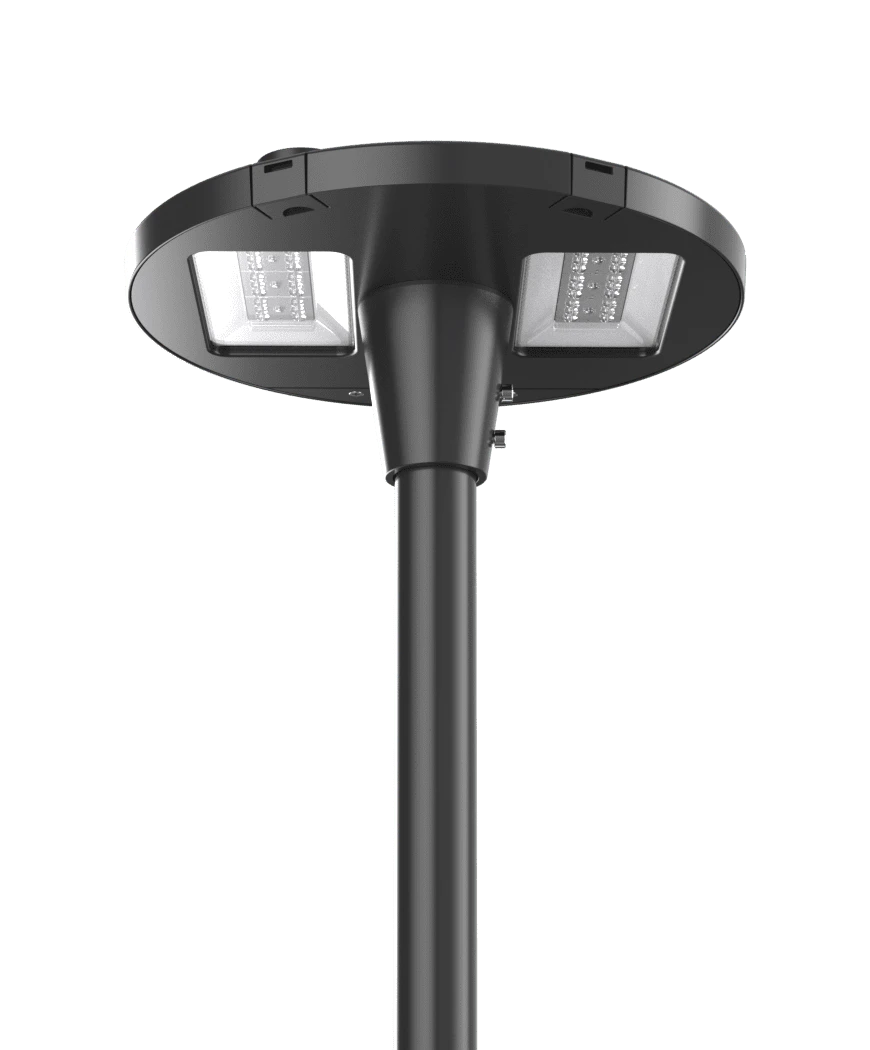

Middle Arm

Product Code : LVN-24/36-PGXXJPT

Center armed, pole connection diameter 60mm, 40-75W Park Garden Luminaire.

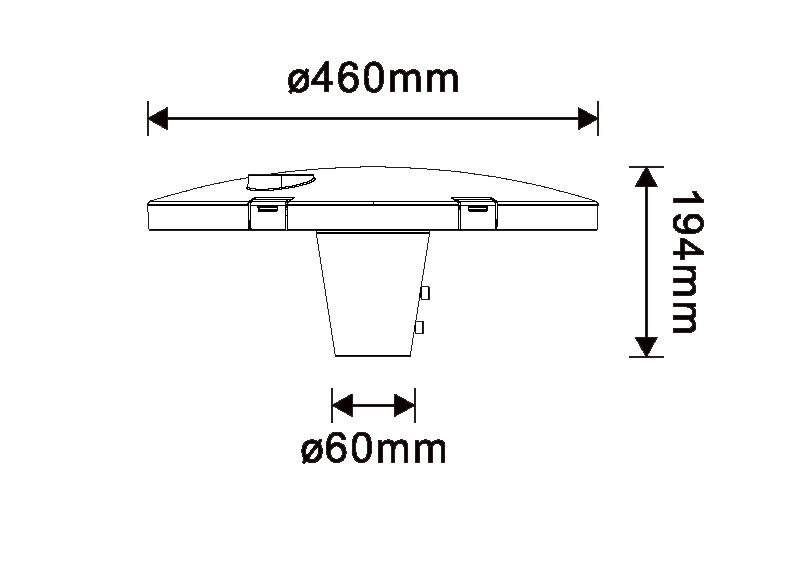

General Features Technical Specifications Applications Standarts Technical Drawing
  • Perfect Mold Design, Integrated Pressure Die-Casting Aluminum.
  • Impeccable Surface Quality and Excellent Design.
  • Slim-Sleek Wingless Structure, Excellent Heat Dissipation.
  • Key or Tool-Free Access.
  • High Light and Energy Efficiency.
  • Standard Deviation Color Matching SDCM MacAdam<5.
  • Lens Light Distribution; IESNA Type II or Type III.

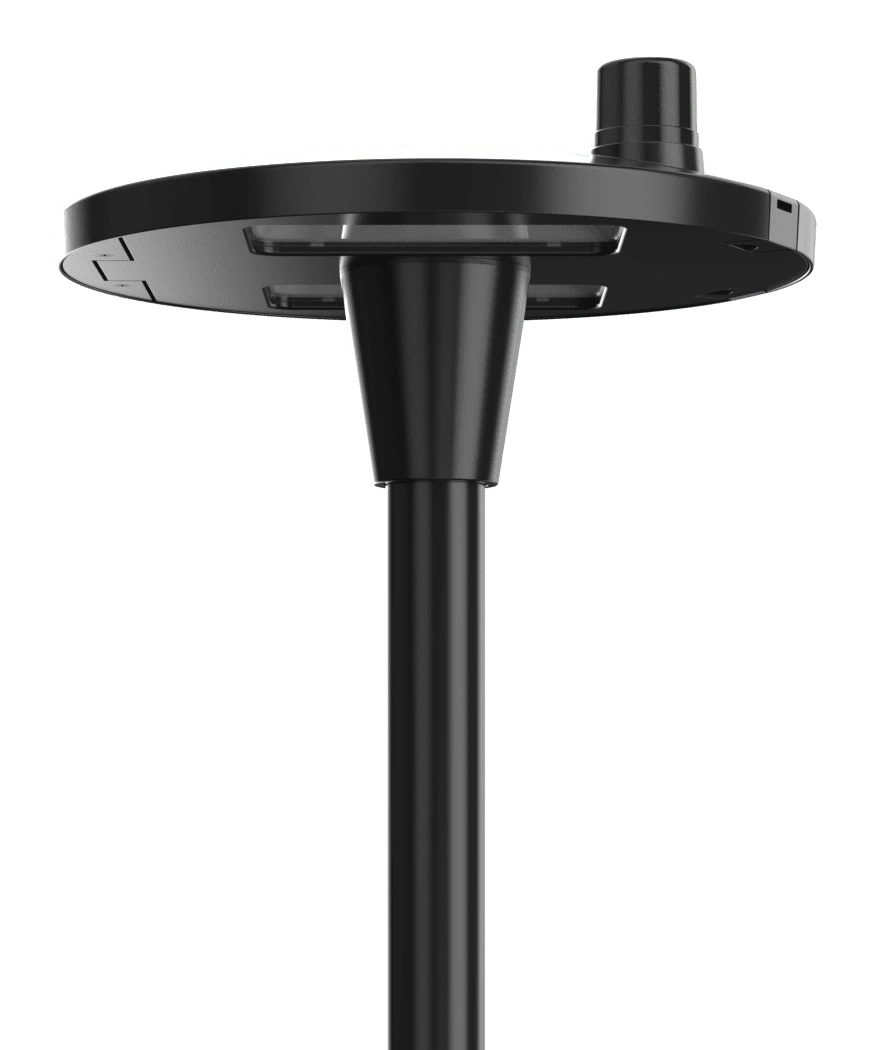

  • Smart Lighting Infrastructure with optional NEMA & ZHAGA Socket.
  • 1-10V / DALI / D4i or Intelligent Timed Dimming.
  • LED Driver Thermal Protection.
  • Robotic Electrostatic Powder Coating.
  • Paint Code (RALXXXX) that can be changed upon customer request.
  • IK10 Aluminum Body.
  • IK08 4mm Tempered Glass.
  • Optional 10kV/20kV external SPD.

Product Code
Smart Management
Body
Power
Input Voltage Range
Power Factor
Total Harmonic(I)
LED Pieces
Lumen
Color Temperature
Color Rendering Index ( CRI )
LED (LM80) Life
DIMM
SPD
Operating Temperature
Lighting Curve
IP Class
Insulation Class
Front Side
Arm Diameter
Weight
Dimensions
Warranty Period
Model I
LVN-24-PG40JPT-MA
NEMA/Zhaga Option
Aluminum Injection
40W
170-264 AC 50/60Hz
0,98
<4%
24 High Power
5994*
2200-3000-4000K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
DALI Option
10kV/20kV Option
-30 / +50 °C
Type II / Type III
IP 66
Class I
4mm Tempered Glass
60mm
4,8 kg
460 x 194 mm
3 / 5 years
Model II
LVN-24-PG60JPT-MA
NEMA/Zhaga Option
Aluminum Injection
60W
100-277 AC 50/60Hz
0.98
<3%
24 High Power
8136*
2200-3000-4000K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
1-10V/DALI Option
10kV/20kV Option
-30 / +50 °C
Type  II / Type III
IP 66
Class I
4mm Tempered Glass
60mm
5 kg
460 x 194 mm
3 / 5 years
Model III
LVN-36-PG75JPT-MA
NEMA/Zhaga Option
Aluminum Injection
75W
100-277 AC 50/60Hz
0.99
<3%
36 High Power
10602*
2200-3000-4000K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
1-10V/DALI Option
10kV/20kV Option
-30 / +50 °C
Type  II / Type III
IP 66
Class 1
4mm Temperled Glass
60mm
5 kg
460 x 194 mm
3 / 5 years

 * Lumen values are given for 4000K & CRI 70.

  • Park & Garden Lighting.
  • Wallking Path Lighting.
  • Sidewalk Lighting.
  • Landscape Area Lighting
  • Parking Lot Lighting

  • EN 60598-1

  • EN 60598-2-1

  • LM 79

  • LM 80 & TM 21

  • CE
